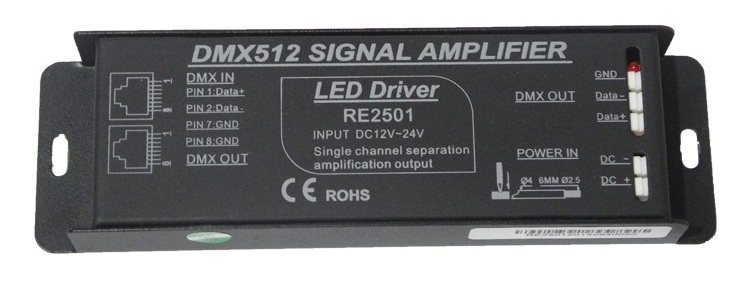

Single Channel DC12-24V DMX512 Amplifier DMX Signal Splitter RE2501
Summerize:
RE2501 digital signal distributor is used to DMX512 digital lighting control signal for amplification and single channel distribution output, each input/output interface adopts high voltage isolation technology, applied to DMX512 signal via remote transmission attenuation after the plastic amplification processing, as well as various distribution output interface, between input interface and the distribution between output interface to complete electrical isolation use occasion. As a result of each interface between independent isolation, and it can be avoided by controlling circuit, scanner, silicon box problems and burned precision digital light console, to ensure the safe operation of digital light console, at the same time also guarantee DMX signal can normal transfer to all kinds of lighting equipment, so as to improve the whole digital lighting control system reliability.
Features:
1), DMX signal amplification and single channel distribution output.
2), Each input/output interface adopts high voltage isolation
technology.
3), Matching all kinds of lighting equipment.
4), Signal types: DMX512, and the RS-485 interface of various digital
signal transmission.
5), Signals connected socket: input RJ45.
6), Output 3 PIN pressure buckle terminals.
7), Input to output, output to output electrical isolation pressure:
> 1000V.
Specifictions:
Input Voltage: 12-24VDC | Channel: 1CH In & 1CH Out |
Input Signal:DMX512 | Output Signal:DMX512 |
Segregation Voltage: > 1000 V | Power Consumption: <1.5W |
Protection Grade: IP40 | Input/Output Socket:RJ45/Pressure Terminal |
Gross Weight: 450g | Product Size: L160*W90*H30mm |
Tech-Parameters of DMX Signal Splitter Series:
Model No. | Input Signal | Channels | Input Voltage | Connect Socket | Special Function |
RE2000 | DMX512/1990 | 1CH in/2CH out | AC100-265V | RJ45/Press terminal | |
RE2501 | DMX512/1990 | 1CH in/1CH out | DC12-24V | RJ45/Press Terminal | |
RE2502 | DMX512/1990 | 1CH in/1CH out | DC12-24V | RJ45/Press Terminal | DMX Address Dispenser by Digital Tube |
RE2504H | DMX512/1990 | 1CH in/4CH out | AC90-250V | RJ45/Press Terminal | |
RE2508H | DMX512/1990 | 1CH in/8CH out | AC90-250V | RJ45/Press Terminal | |
RE2509H | DMX512/1990 | 8CH in/8CH out | AC90-250V | RJ45/Press Terminal |
Function Instructions:
(Left Side): The DMX signal input: RJ45 network interface, the
correct connection is on panel..
(Right Side): 2 PIN press button terminals for is DC power input.
The other 3 PIN press button terminals is for DMX output and there
is a red indicator light showing output signal well.
Product Wiring Diagram:
DMX512 Control Signal Connection:
1. DMX signal cable is made of twisted pair (line), DMX signal
includes positive and negative end, in pressure welding DMX signal
line plug should pay special attention to polarity.DMX512
controller output signal positive, signal negative, signal ground
with DE8008 input interface corresponding connection.
2. DMX5000 output and DE8008's transmission lines can't be over 300
meters.
3. DMX5000 each interface can with not more than 170 DE8008. Eight
output interface. Through the JBLED FLASH light making software and
can with computer on line control. Realize infinite contact the DMX
lights.
4. When contacting 32 DE8008, DMX signal must add a signal amplifier
RE2501. Cascade can't more than 4 PCS.
|
|
