Online / Offline control 8 ports Output DMX512 master controller
DMX1360 as online and off-line together controller. It provides 8 standard DMX512 data output port, total output 8×512 data and each interface maximumloading for 170 pixels. It only can single control, can't cascade.
DMX1360 use SD card storage with remote control and can realize play fragment selection, brightness adjustment, speed adjustment, built-in animation testing procedures, and other functions, and satisfy the customers in the application and debugging of many of the demands.
DMX1360 uses standard 1U(19" ) chassis architecture, convenient installation in professional cabinet, easily operation setting with LCD display. It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on.
Product Appearance and Description:
ONE. DMX1360 off-line player to face up to the diagram and description:
1 -- Power switch 2 -- LCD display screen 3 -- Power light
4 -- Work indicator 5 -- SD card socket 6 -- RJ45 network interface
7 -- Infrared lights 8 -- Terminals output 9 -- Power supply socket
TWO. The remote control panel apperance and descriptions:
Performance Features:
● Based on Artnet protocol network data communication, accept network DMX data.
● Can set two different IP address in each controller.
● Set different network segments to avoid multiple sets Artnet data interference.
● Manage Artnet on broadcast mode or unicast mode.
● Standard 1U(19" ) chassis architecture, convenient installation in the standard cabinet.
● With LCD screen display, convenient operation intuitive settings
● With SD card to instore the LED flash effects.
● Provides 8 standard DMX512 data output port and can output total 8×512 data.
● Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.
Connections:
ONE. Connect with PC.
TWO. Output interface line sequence.
DMX1360 with two types of output: 8 pcs RJ45 interface or 8 groups 3PIN press terminals.
| Types | 1 | 2 | 7 | 8 | |
| RJ45 | IN | DATA- | DATA- | GND | GND |
| OUT | DATA- | DATA- | GND | GND | |
| Color | RED | GREEN | GREY | - | |
| 3PIN | DATA+ | DATA- | GND | - | |

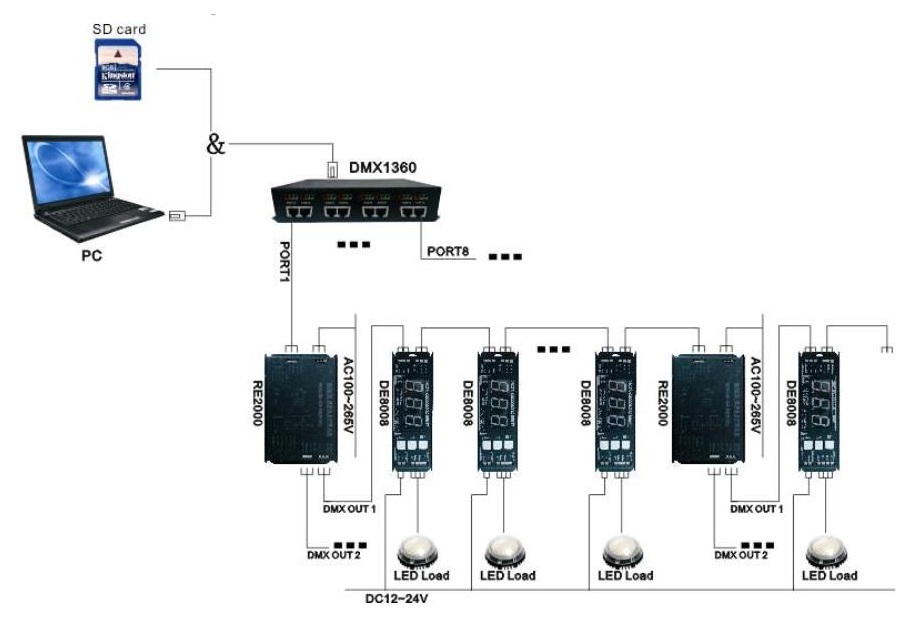

THREE. DMX512 Controlling System Wiring Diagram.
|
|
