RGBW dmx decoder Constant Voltage 10A/CH * 4 channel XLR RJ45 for LED fixture

Model : DE8358

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~4 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Product Features:

Meets DMX512/1990,with RJ45 interface and XLR to choose.
256-levels brightness,full-color with driver controls.
Power without ashing, smooth at low.
4 ways of output channel, single channel maximum 10A output drive, total output is less than 40A.
Can achieve asynchronous color changes effect under working with controller.
With the light color selected mechanism, and be able to control the light with 1~4 colors.
Setting the DMX address freely by dip switch.

Product Size :

Size:L122*W107*H33mm

Weight :350g

Note :

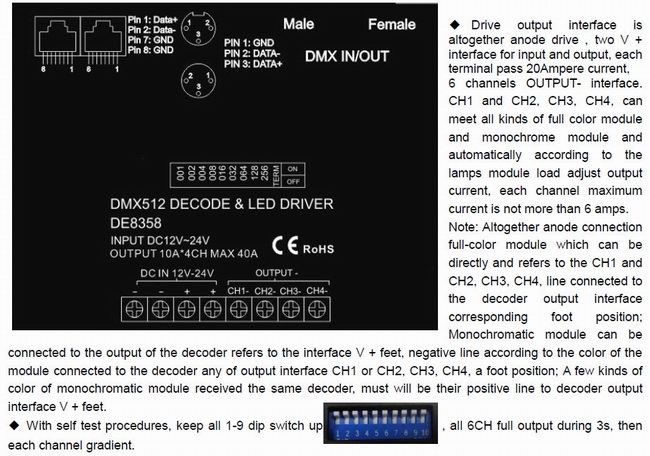

DMX-512 control signal connection

◆DMX signal cable with three core belt shielding line (signal special wire), DMX signal positive, negative terminal crimping, in DMX signal line plug should be paid special attention to the polarity. The input interface and corresponding signal output from the DMX512 controller,signal is negative, and the connection of DE8358 signal.

◆The DMX5000 output and DE8358 transmission line can't exceed 300 meters.

◆Most DMX5000 each port connected 128 DE8358, the JBLED FLASH light system software can realize control and computer on-line, realize unlimited expansion cascade with DMX lamp.

◆Every connected 32 DE8358 control, DMX signal must be combined with a signal amplifier (such as: RE2000), cascade cannot be more than 4PCS.
