24 Channel Dmx Decoder DMX512 Constant Volatge Decoder 24CH CV PWM 2A x 24CH

Model : DE8024

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~24 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Product Features:

◆Meets DMX512/1990
◆256-levels brightness,full-color with driver controls
◆Output 24 channels,MAX 2A per channel.Total current is 48A.
◆Can achieve asynchronous color changes effect under working with controller. ◆Cooperate with control system, can realize rich change effect.
◆Setting the DMX address freely
◆Modularizing and can be matched with different LED module neatly.
◆There are 3 x Max20A 4pin power in connectors, please apply according to LED load power requirement.
◆Custom-made.

Product Size :

Size:L250*W130*H24mm

Weight :720g

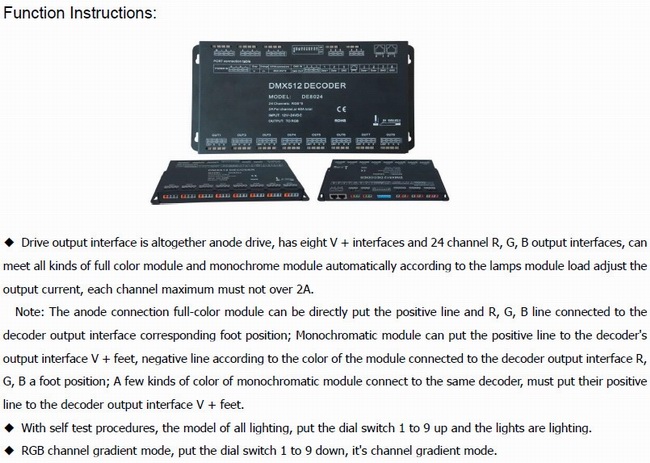

Product instructions:

Diagram:

Note :

DMX-512 control signal connection

◆ DMX signal cable is made of twisted pair ( line ) , DMX signal includes positive and negative end , in pressure welding DMX signal line plug should pay special attention to polarity . DMX512 controller output signal positive , signal negative , signal ground with DE8524 input interface corresponding connection .

◆ DMX5000 output and DE8524's transmission lines can't be over 300 meters .

◆ DMX5000 each interface can with not more than 16 pieces of DE8524. eight output interface . Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights .

◆ When connected 32 pieces of DE8524 , DMX signal must add a signal amplifier RE2000 . RE2000 Cascade can't more than 4 PCS.
