24 Channel DMX512 Controller Led Decoder Dimmer CC 350mA 700mA

Model : DE8025

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~24 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Product Features:

◆Meets DMX512/1990,with RJ45 interface.

◆256-levels brightness,full-color with driver controls.

◆Output 24 channels,Max 350mA /700mA per channel.

◆Can achieve asynchronous color changes effect under working with controller.

◆With the light color selected mechanism, and be able to control the light with 1~3 colors.

◆Setting the DMX address freely.

◆Modularizing and can be matched with different LED module neatly.

◆There are 3 x Max20A 4pin power in connectors, please apply according to LED load power requirement.

◆Custom-made.

Product Size :

Size:L250*W130*H24mm

Weight :720g

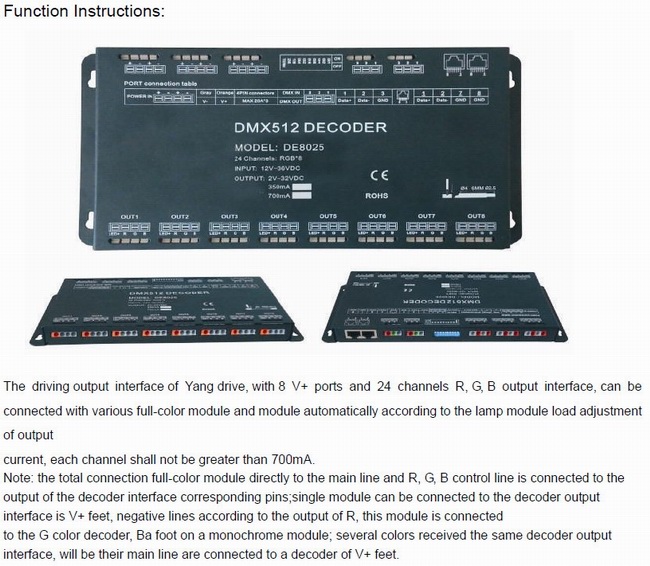

Product instructions:

Diagram:

Note :

DMX-512 control signal connection

◆ DMX signal cable is made of twisted pair ( line ) , DMX signal includes positive and negative end , in pressure welding DMX signal line plug should pay special attention to polarity . DMX512 controller output signal positive , signal negative , signal ground with DE8524 input interface corresponding connection .

◆ DMX5000 output and DE8525's transmission lines can't be over 300 meters .

◆ DMX5000 each interface can with not more than 16 pieces of DE8525. eight output interface . Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights .

◆ When connected 32 pieces of DE8525 , DMX signal must add a signal amplifier RE2000 . RE2000 Cascade can't more than 4 PCS.
