Synchronous Control LED Driver Dimmer Switch Touch Panel / Single Channel Founded

Shanghai Jibang Electronic Technology Co., Ltd.
Contact Now
    Buy cheap Synchronous Control LED Driver Dimmer Switch Touch Panel / Single Channel Founded from wholesalers

    Buy cheap Synchronous Control LED Driver Dimmer Switch Touch Panel / Single Channel Founded from wholesalers
    • Buy cheap Synchronous Control LED Driver Dimmer Switch Touch Panel / Single Channel Founded from wholesalers
    • Buy cheap Synchronous Control LED Driver Dimmer Switch Touch Panel / Single Channel Founded from wholesalers
    • Buy cheap Synchronous Control LED Driver Dimmer Switch Touch Panel / Single Channel Founded from wholesalers

    Synchronous Control LED Driver Dimmer Switch Touch Panel / Single Channel Founded

    Ask Lasest Price
    Brand Name : JIBANG
    Model Number : DMX8601
    Certification : CE/ROHS/EMC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram,PayPal
    Supply Ability : 10000 pieces per month
    Delivery Time : 3-15 working days
    • Product Details
    • Company Profile

    Synchronous Control LED Driver Dimmer Switch Touch Panel / Single Channel Founded


    Single Channel DMX Controller LED Dimmer Switch DMX8601

    Sumerize:
    DMX8601 is a LED dimmer switch that can be used for DMX dimming controlling. It is input voltage is AC100-240V which can match daily electricity.
    It can be used as a DMX bus while you need to control little LED lights synchronously. Please read the manual carefully before using.
    Features:
    1, Optional DMX 512 wired output, control DMX lamps and lanterns.
    2, The rst t - PWM dimming technology has almost perfect dimming and toning performance.
    3, Supporting multi-connection control of multiple panels.
    4, Beautiful appearance design, simple and fashionable.
    Technical Specifications:
    Model No.DMX8601
    Input VoltageAC100-240V
    Output SignalDMX512/1990
    Channels1CH Control
    Control ModeSynchronous control
    Working Temperature-30~55℃
    Product SizeL86*W86*H36mm
    Gross Weight225g

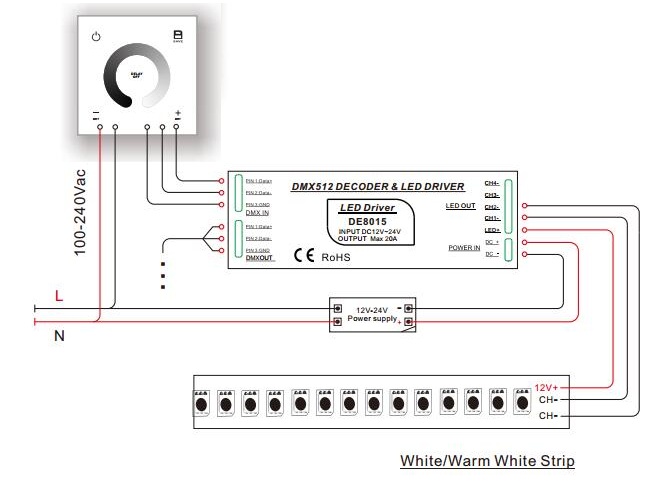

    Product Size and Installation:



    Specifications of LED Dimmer Switch Series:


    Model No.Input VoltageOutput SignalControl Channels

    Max Current Load

    Max Output PowerControl Type
    DM8088AC90-250VTRIACN/A2.5A

    630W

    Know Switch
    DW8080Passive0/1-10VN/AN/AN/AKnow Switch
    DL8601DALI PowerDALI1CHN/AN/ATouch Panel
    DL8602DALI PowerDALI2CHN/AN/ATouch Panel
    DL8603DALI Power

    DALI

    3CHN/AN/ATouch Panel
    DL8604DALI PowerDALI4CHN/AN/ATouch Panel
    DMX8601AC100-240VDMX5121CHN/AN/ATouch Panel
    DMX8602AC100-240VDMX5122CHN/AN/ATouch Panel
    DMX8603AC100-240VDMX5123CHN/AN/ATouch Panel
    DMX8604AC100-240VDMX5124CHN/AN/ATouch Panel

    Operating Instructions:



    1, ON/OFF key: Turn ON / OFF the touch panel.


    2, Touch Circle: Touch anywhere to reach the brightness you need.


    3, Brightness +/- : Press the two keys to adjust the brightness freely.


    4, Delay OFF : Press this key, the LED will keep on lighting for 15 seconds and then light off.


    5, Scene Mode: Long press the key to save a suitable lighting environment as you need. Then you can reach it directly next by short press this key.


    Product Online:
