86*86 Size 0-100% 0-10V Dimming LED Dimmer Switch for LED Lighting DW8080

Features:

1. 0-10V signal dimmer, this dimmer is passive type, output 0-10V analog dimming signal.

2. User can adjust the 0-10V analog signal by infinite switch knob.

3. Easy to install, it's suitable for commercial or household standard 86 style socket.

4. Adjust the light stability of delicate soft, no flicker phenomenon.

5. 0~100% brightness adjustment, knob type stepless dimming

Tech-Parameters:

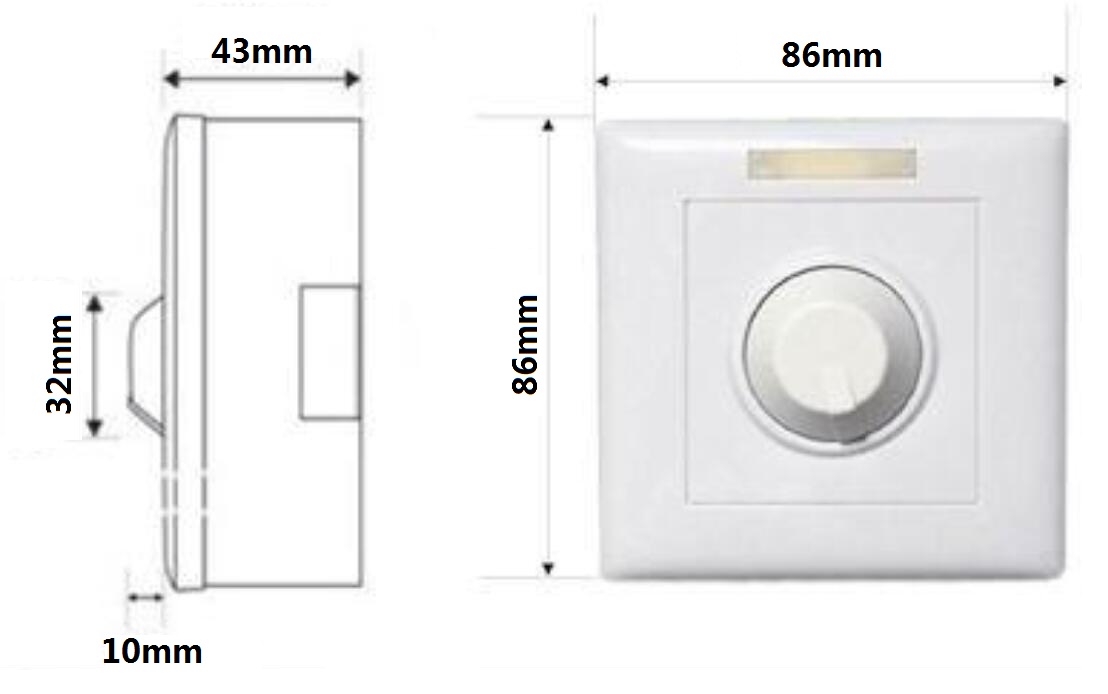

Product Size:

Wiring Diagram of Passive 0-10V Dimmer Switch DW8080:

1. Diagram of 0-10v dimmer switch and O/1-10V high voltage dimmable drivers:

2. Diagram of 0-10v dimmer switch and 0-10v dimming LED drivers:

3. Wiring Diagram of a whole 0-10V dimming system:

Exception Handles:

Safety warnings:

Please don't install this controller in lightening, intense magnetic and high-voltage fields.
1. To reduce the risk of component damage and fire caused by short circuit, make sure correct connection
2. Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3. Check if the voltage and power adapter suit the controller (please select DC12-48V power supply with constant voltage)
4. Don't connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.
5. Please don't open controller cover and operate if problems occur.

The manual is only suitable for this model; any update is subject to change without prior notice.
