Single Channel CC Multifunctional DMX Decoder & LED Power Amplifier AL7003

Summerize:

LED power repeater is suitable for all of our single color & RGB controllers to expand power output, it supports PWM control and can connect one to three times more LEDs by adding one more power repeater, and unlimited power repeaters can be connected together theoretically.

The constant voltage power repeaters and constant current power repeaters can be connected together, which is convenient for controlling LEDs with different voltage and power.

Signal input and output of LED power repeater have security protection function with photoelectricity isolation of 5KV.

Features:

1. With Mode Setting, AL7003 can be controlled by DMX signal or PWM signal.

2. With output switch, AL7003 can output constant current 350mA or 700mA.

3. Input 24VDC, output voltage range: 3VDC-48VDC

4. No flicker, high frequency PWM output

5. Can achieve dimming effect under working with controller.

6. Setting the DMX address freely.

7. Modularizing and can be matched with different LED module neatly.

8. Through the LCD1602 screen display menu.

9. Custom-made available and 3 years warranty.

Specifications:

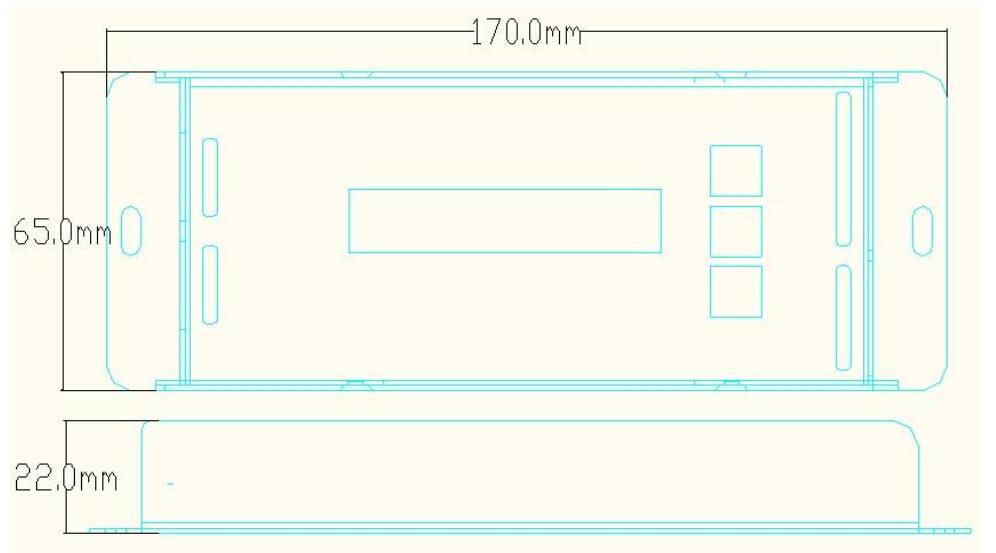

Product Size:

Operating instructions:

1, Product panel can display content through the LCD display, through the mechanical switch menu options, adjust the internal procedures and address code.

2, As press the key above , call up the DMX512 external control and internal dimming program menu, set address code and adjust the brightness can be adjusted according to press other two keys respectively.

3, See the panel to correctly wiring.

4, PWM signal input through “+, -“ terminal with words " CONTROLLER 24VDC INPUT ".

Wiring Diagram:

Cautions:

1.This products Input voltage is DC24V,other input voltage are not allowed.

2.Lead wire should be connected correctly,according to the wire color and the connecting diagram offers

3.Overload are prohibited.
