Max 20A*1CH DC12-24V Knob Switch Type PWM LED Dimmer DM9151
SUMIRIZE:
DM9151 is the Single channel product of LED PWM Dimmer Series. There are also 2CH, 3CH and 4CH similar products for option. PWM is the signal which can directly input into the LED lights and light them up. The PWM dimmer can directly adjust the brightness of the LED lights without more devices. It also has disvantages of the smooth dimming curve and no flicker. Easy control and good dimming effect makes this new dimming way more popular in the world.
1), Single channel constant voltage output dimming control, output MAX.20A.
2), Power without flashing, high frequency output,do not jitter at low end.
3), Perfect dimming curve, the output is smoother and no flicker.
4), Custom-made is available and 3 years warranty.
Tech-parameters:
| Product Name | LED PWM Dimmer |
| Model NO. | DM9151 |
| Input Voltage | DC12-24V |
| Output Current | 20A Max |
| Control Channels | 1 CH |
| Max Output Power | 240W(12V)/480W(24V) |
| Light Gary Level | Stepless Dimming |
| Frequency | 2000Hz |
| Working Temperature | 0-70℃ |
| Protection Grade | IP40 |

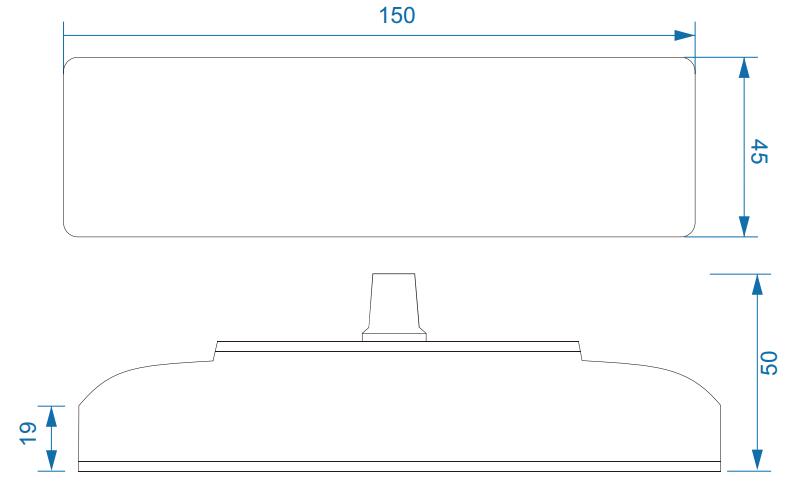

| Product Size | L150*W45*H50(mm) |
| Gross Weight | 125g |
Specifications of LED PWM Dimmer Series:
| Model No. | Channels | Input Voltage | Max Current Load | Max Output Power | Numbers of Knob Switch |
| DM9151 | 1CH | DC12-24V | 20A*1CH | 240W/480W | 1 pcs |
| DM9152 | 2CH | DC12-24V | 10A*2CH | 240W/480W | 2 pcs |
| DM9153 | 3CH | DC12-24V | 6A*3CH | 216W/432W | 3 pcs |
| DM9154 | 4CH | DC12-24V | 5A*4CH | 240W/480W | 4 pcs |
Function Instructions:
As Shown,the LED load and power's negative and positive with the right interface, open the power supply, regulator potentiometer, so as to change the output of the controller, until getting the satisfactory of LED output.Potentiometer with switch function, when shutdown controller will cut off power supply.
Product Wiring Diagram:
Notes:
The load LED and the controller of power's voltage must be consistent, and must be within the product of the input voltage regulation range.Make sure that the load LED power does not exceed the load capacity of the controller's power supply.
|
|
