Shanghai Jibang Electronic Technology Co., Ltd. The Professional Supplier of LED Dimmer Controller
8 Years
| Ask Lasest Price | |
| Brand Name : | JIBANG |
| Model Number : | DM8088 |
| Certification : | CE/ROHS/EMC |
| Price : | Negotiation |
| Payment Terms : | T/T, Western Union, MoneyGram,PayPal |
| Supply Ability : | 1000 pieces per month |
| Delivery Time : | 3-15 working days |
86*86 type 0-100% dimming with no flicker led dimmer switch triac switch DM8088
Sumerize:
DM8088 is one of LED dimmer that can be used for Triac dimming controlling. Its max load power is 630W when the input voltage is max AC250V. Please don't exceed the max current load when connect several Triac dimming drivers after the dimmer. DM8088 can perfactly cooperate with Triac dimming drivers from Shanghai JIBANG factory.
Features:
1.Wide-angle (300 degree) potentiometer with switch, widely range
to adjust.
2.Stepless dimming range from 0 to 100%.
3.Automatically adjust the absorption of high-frequency harmonic interference, small disturbance to the power grid and other household appliances, and keep stable and reliable working.
Tech-parameter:
Input Voltage: AC220~250V | Max Power: 630W | The Light Gray Level: 0-100% |
Dimming Voltage: AC30-250V | Max Output Current: 2.5A | Protecting Grade: IP40 |
Gross Weight: 120g | Size: L86mm*W86mm*H48m | Work Temp: -30~55℃ |
Specifications of LED Lighting Dimmer Series:
Model No. | Input Voltage | Output Signal | Control Channels | Max Current Load | Max Output Power | Control Type |
DM8088 | AC90-250V | TRIAC | N/A | 2.5A | 630W | Know Switch |
DW8080 | Passive | 0/1-10V | N/A | N/A | N/A | Know Switch |
DL8601 | DALI Power | DALI | 1CH | N/A | N/A | Touch Panel |
DL8602 | DALI Power | DALI | 2CH | N/A | N/A | Touch Panel |
DL8603 | DALI Power | DALI | 3CH | N/A | N/A | Touch Panel |
DL8604 | DALI Power | DALI | 4CH | N/A | N/A | Touch Panel |
DMX8601 | AC100-240V | DMX512 | 1CH | N/A | N/A | Touch Panel |
DMX8602 | AC100-240V | DMX512 | 2CH | N/A | N/A | Touch Panel |
DMX8603 | AC100-240V | DMX512 | 3CH | N/A | N/A | Touch Panel |
DMX8604 | AC100-240V | DMX512 | 4CH | N/A | N/A | Touch Panel |
Operating Instructions:

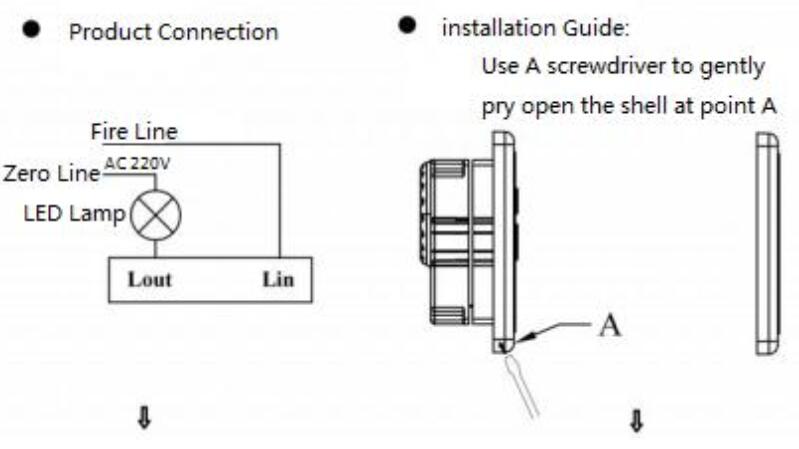

According to the product connection diagram,LED load and power supply must be exactly connected according to the fire line and zero line.When power supplying, adjusting the Triac dimmer knob can change the output of the controller, until a satisfactory output LED brightness.
Product Online:
TRIAC System Connection Notes:
1. Please separate the power supply of Triac driver from other
products’ power supply to ensure the smoothness of the dimming.
2. The power supply voltage of LED load should be in accordance with
the power supply voltage of the controller which must be within the
range of input voltage that specified by the product.
3. If there are many dimming drives in a bus, please determine the total power is less than the effective load capacity of the dimmer switch.
4. This Dimmer can be connected to several TRIAC drivers while the power is available. The max power is 630W while the Input voltage is 250V. So the power is only 275W while the input voltage is only 110V.
|
|
