Online Control Cascaded Available 4096 Channels DMX512 Master Controller
Brief introduction:
DMX5000 is an online control asynchronous DMX512 master controller which can be cascaded. It has 8 outputs, each pixel communization control points maximum can reach 170 (512 CH), the biggest take carry 1360 pixels.
DMX5000 adopt online control and can realize play fragment selection, brightness adjustment, speed adjustment, built-in animation testing procedures, and other functions. With the program of JIBFLASH.
DMX5000 can run any customized flash files into lighting controlling effects. It has aluminium alloy encloser and easily operation setting with LCD display. It can match most the standard DMX512 signal devices and be used in many regions around the world.
Performance Features:
1. Support DMX512/1990 agreement, 8 ports output. Gray level 256 to
control, real image color and detail.
2. Three colors independent brightness control, make accurate
adjustment white balance more simple and effective.
3. According to the physical characteristics of the visual
adjustment hardware gamma corrected function.
4. 100 Hz refresh rate can guarantee the stability of the picture.
5. The Ethernet interface and UDP network protocol, the
transmission distance is 100 meters.
6. Display module to display and control parameters, state.
7. Double network interface, can realize between controller cascade.
8. Playing a variety of video formats of the documents and pictures
which has asynchronous contents .
9. The program JIBFLASH support Windows operating system, Chinese &
English for option.
10. Support IP packet function, realize the larger project many sets of the stability of the controller.
Parameters:
Product Name | Online Control DMX512 Master Controller |
Model No. | DMX5000 |
Control Color | RGB, RGBW, Full-color |
Control Pixels | 1360 Pixels (4096 channels ) |
Output Ports | 8 ports DMX512/1990 signal |
The Light Gray Level | 256 level ~ 65536 level |
Input Voltage | AC100-240V |
Rated Power | 2.5 W |
Output Sockets | RJ45 Interface / Press Terminals |
Attentions when wiring
1. DMX5000 differential output, this kind of means only for double
signal or single signal lamps and lanterns, that the only data or
data, the clock Suggestions for the five kinds of above and the
cable, and lamps or difference transfer board to answer the method
for use intertwined with two lines of one as A and one as B, such
as orange as A, orange white as B.
2. DMX signal transmission generally shielded twisted-pair cable,
the signal ground must be
answered. At the end of every signals that between A and B to add A
120 R terminal resistance.

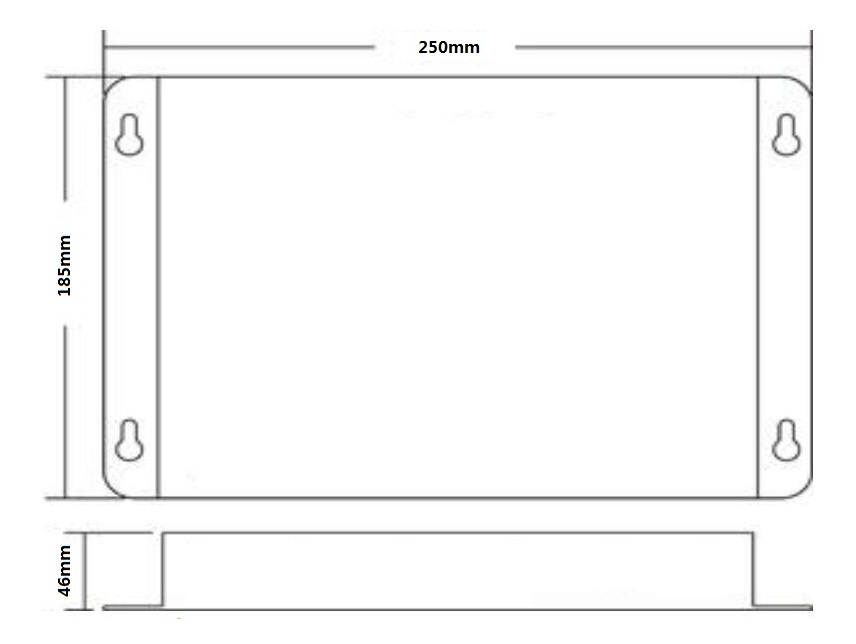

Product Size:
DMX340 System Wiring Diagram:
|
|
